US-AX “Axeway” Truck Scale 40,000 lb

Sale!

US-AX "Axeway" Truck Scale 40,000 lb

SKU N/A Category

$5,799.00$8,499.00

USA Measurements introduces our US-AX “Axeway” truck scale. Available in three sizes: 7′ long, 10′ long or 12′ long. It comes in our 40,000 lb capacity and weighs in 10 lb increments. Our set-up includes 50′ cables, 4 ramps, US-M7 smart weighing indicator with built in printer, and factory calibration. The scale requires 110V power or can be used with our rechargeable battery up 80 hour life.

Clear

Description

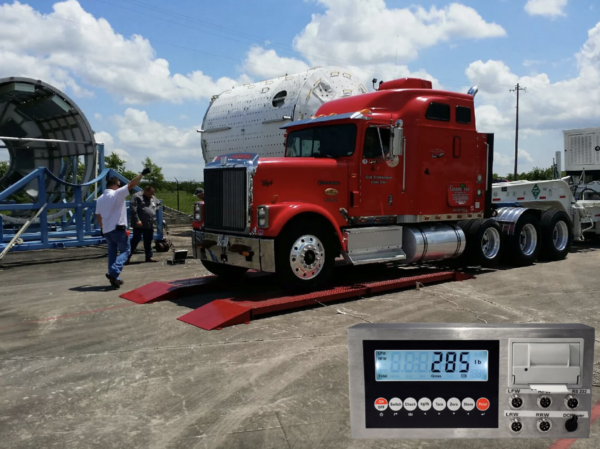

USA Measurements US-AX series truck scale. System includes dual weigh bridges (2 pas), digital LCD display, receipt printer, (4) ramps, and 50′ steel braided cables. This system can be used to weigh cars, trucks, pick-ups, roll offs, dumpster trucks, tractor trailers, and many other types of vehicles. The user will drive each axle on the scale and the US-M7 indicator can offer an accumulated total print out. Great for portable applications, outdoor use, placed in permanent yards, and many other uses. The US-AX series is perfect to avoid DOT fines.

Features:

  • Avoid overweight fines, DOT fines, and ensure underloading
  • Available in 7′ long, 10′ long, or 12′ platform length
  • Capacity: 40,000 lb x 10 lb
  • Large weighing surface and low profile for vehicle weighing
  • Heavy duty I-Beam construction with threaded top plate
  • Four premium water tight alloy steel nickel plated load cells
  • Low profile 5.5” height for smooth drive on/off
  • Load cell capacity is 2.2 times the scale capacity for overload protection
  • 50’ quick connecting cables (2) for hostile environments
  • Can be used with ramps for above ground installations or flush with
  • concrete for a pit installed permanent application
  • Durable platform with treading for tire grip
  • Powder coated yellow paint finish
  • Forklift portable
  • Factory Calibrated
  • Overload Protection
  • 5 Year Warranty on Steel Deck
  • 2 Year Warranty on Electronics



US-M7 Specifications:

  • Designed to work with static axle scales
  • Gross weighing and accumulative weighing modes
  • LCD display (size: 5.3in x 1.4in)
  • Tare, Zero, Print, Save, Check, and Delete functions
  • Kg and lb weighing units
  • Built-in needle printer
  • Different printing formats
  • 6v/4.5Ah Battery and 9v/1.2A adapter
  • Can connect to a secondary large display/scoreboard
  • Can connect with up to 4 weighing pads
  • Shows individual scale/pad percentage of the total weight
  • Manual and automatic printing modes
  • Date and time can be set easily
  • Can connect to a PC or printer for data logging
  • Wireless capability (optional)
  • Splash proof  keyboard and display
