Description

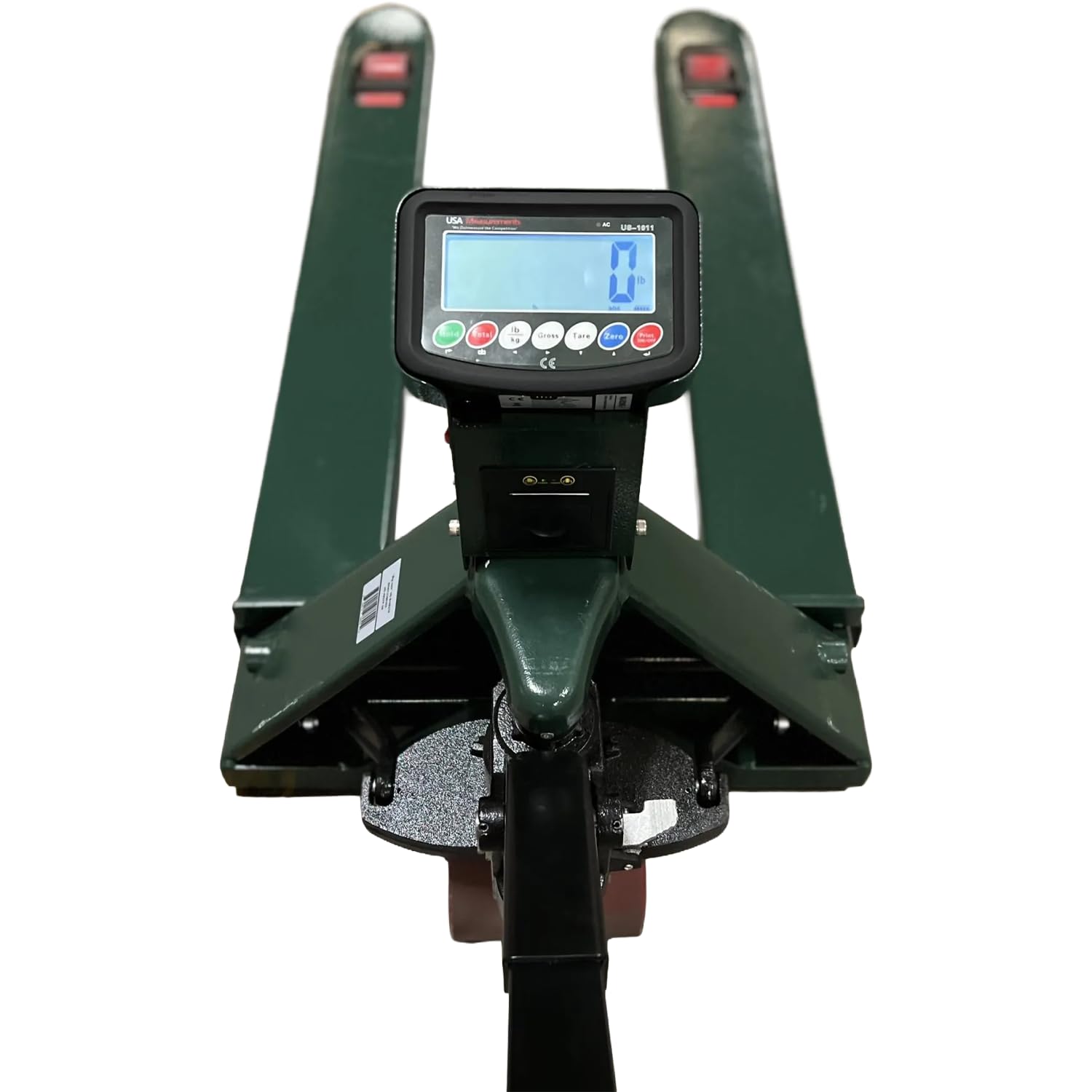

The “Big Jack” Industrial Pallet Jack Scale – your go-to solution for heavy-duty weighing. Built tough with four load cells encased in thick plated steel, this powerhouse scale is designed to handle the toughest jobs with 200% overload protection, making pallet weighing a breeze. It runs on a rechargeable battery, giving you the freedom to weigh on the go or in any location. Paired with the US-1011 indicator, which powers up to four 350-ohm load cells, you get a user-friendly LCD display and a long-lasting battery life of up to 80 hours. The indicator offers essential functions like accumulation, percent weighing, check weighing, and part counting, making it the perfect tool for efficient, on-the-go operations.
Pallet Jack Scale Features:
- Sleek, Low-Profile Design at 2.9″ height
- Fork dimensions: 48″ x 27″
- Equipped with four 350-ohm load cells
- Built tough with heavy-duty steel construction
- Delivers fast, accurate, and dependable weight readings
- Portable and easy to maneuver
- Optional label printer available
- Capacity of 1,000 lb with .5 lb precision
- Functions as both a scale and pallet jack
- 5-year warranty on the steel frame
- 2-year warranty on electronic components
US-1011 Indicator Features:
- LCD Backlight Display
- 1.6” Digit Size
- Net, Total, Hold, Zero, & Accumulation
- Units: Lb, Kg, % weight
- Counting Function
- Rechargeable Battery
- 110V Power Adapter
- Animal Scale Function
- Check weigh (Hi/Ok/Lo)
- RS-232 Output
- Powers (4) 350 ohm Load Cells
- Dimensions: 9.5″x4.9″x2.5″
- Operating Temp: -10°C to 40°C (14°F to 104°F)
What is include:
- (1) Pallet Jack
- (1) Indicator Bracket
- (1) Indicator Column
- (1) US-1011 Indicator
- (1) 15′ Home Run Cable
- (1) 4-Way Junction Box
- (4) Shear Beam Load Cells
- (1) Built in Printer (Adhesive Labels)
- (1) 110V Power Adapter
- (1) User Manual
Common Applications:
- Shipping
- Checking Weighing
- Bagging Applications
- Counting Parts
- Recycling (Non-NTEP applications)
- Seafood / Fishing Tournaments
- Distilleries
- Portable Use
