Description
The US-HDSCN-70K Scale Kit is a complete, all-in-one weighing solution designed for users who need flexibility, reliability, and long-term performance in custom weighing applications. Whether you’re building a platform scale, mounting under tanks or hoppers, creating a livestock weighing solution, or assembling a portable or mobile system, this kit gives you everything needed to get the job done with professional accuracy and efficiency.

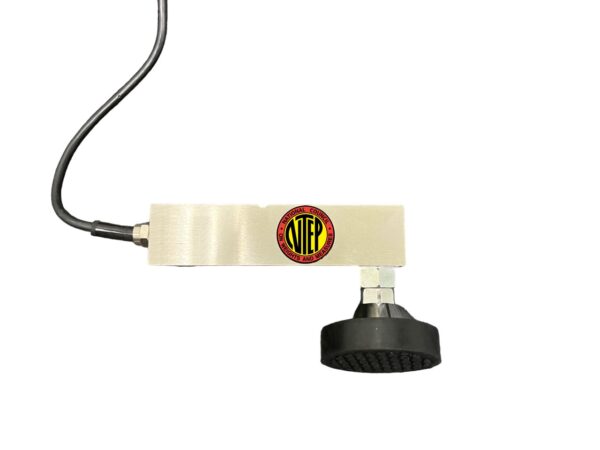

Load Cell Features:
- Hysteresis: 0.03% FS
- Repeatability: 0.02% FS
- Creep (30 Minutes): 0.02% FS
- Temperature Effect on Span: 0.0015% FS/C
- Temperature Effect on Zero: 0.0027% FS/C
- Zero Balance: +/-1.00% FS
- Insulation Resistance: >5,000 MEGOHMS
- Input Impedance: 385 +/- 20 Ohms
- Output Impedance: 350 +/- 350 Ohms
- Safe Overload: 150% FS
- Destructive Load: 300% FS
- Excitation Recommended: 10-15V AC/DC
- Material / Finish: Alloy Steel
- Operating Temperature: -10°C – + 40°C (149F – 104°F)
- Standard Cable: 20 ft (6 meters)
- NTEP Approved (Load Cells)

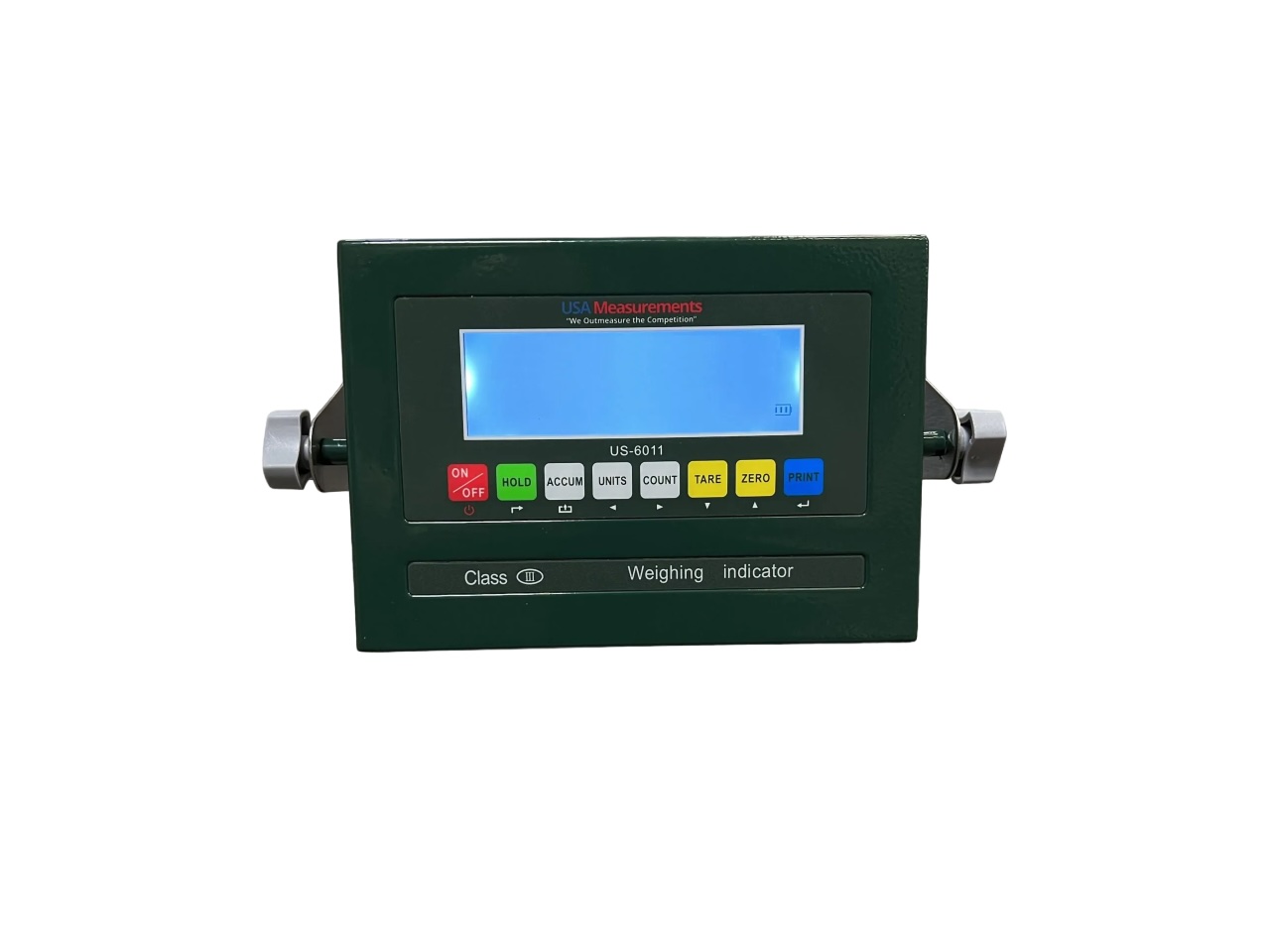

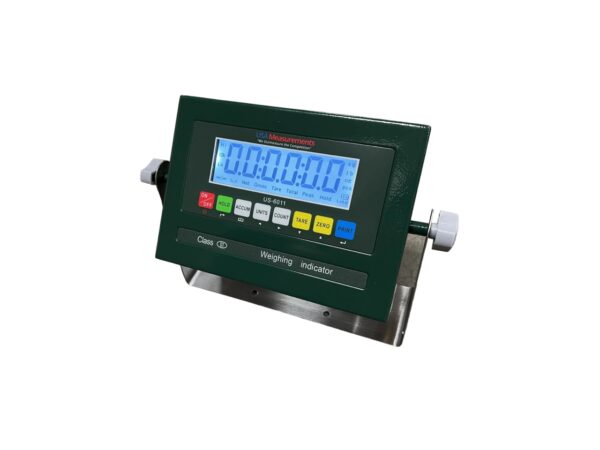

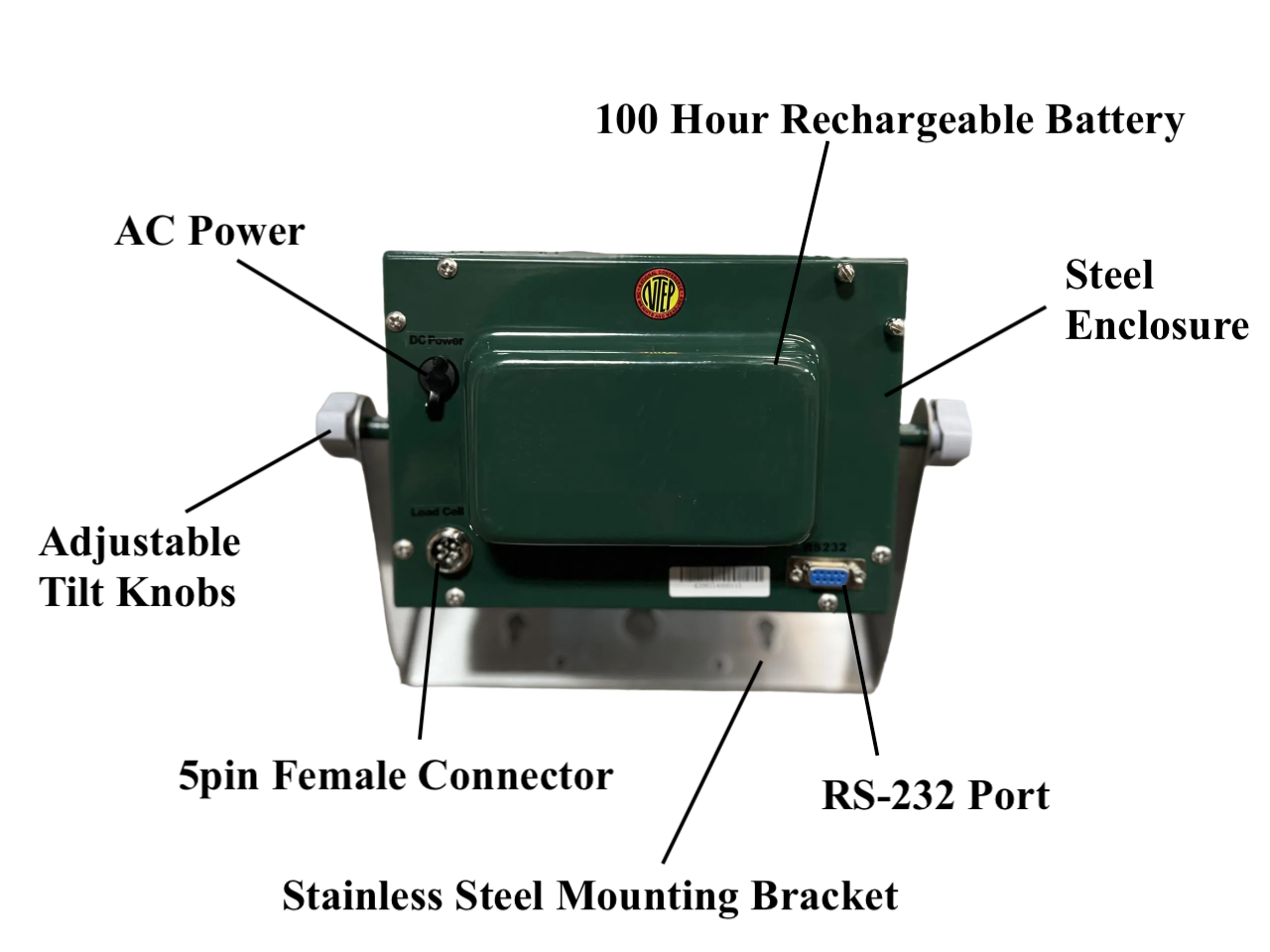

US-6011MS-LCD Features:
- Mild Steel Housing
- 1” Digits in LCD display
- Weighing Units LCD: Kg, Lb, Oz, grams, Lb:Oz
- Gross Weighing Capability
- Multiple Tare Options with Pre-Set Tare
- Zero Function
- Hold Functions for Enhanced Flexibility
- Counting Feature
- Accumulation and Batch Weighing
- Check Weighing with Over/Under Alarm
- Power-Saving Mode
- Auto Date & Time Adjustment
- Adjustable Gravity Based on Location
- Fully Adjustable Zero Range
- Error Warning Alert
- Splash-Proof Keyboard & Display
- RS-232 Ports for Scoreboard and Printer Connectivity
- Supports up to 50,000 Displayed Graduations
- Bracket & Mounting Hardware Included
- 110V Power Adapter
- Easy 5-Step Calibration
- Full Duplex RS-232 Serial Port
- Powers up to Six 350Ω Load Cells
- 2-Year Manufacturer Warranty
- NTEP Approved (Digital Indicator)

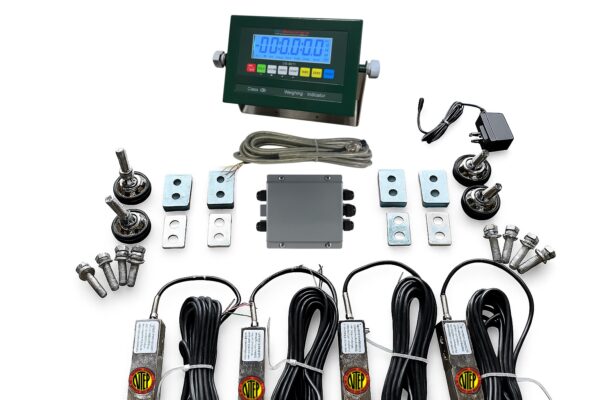

What it includes:
- (4) Shear Beal Load Cells 20,000 lb Each

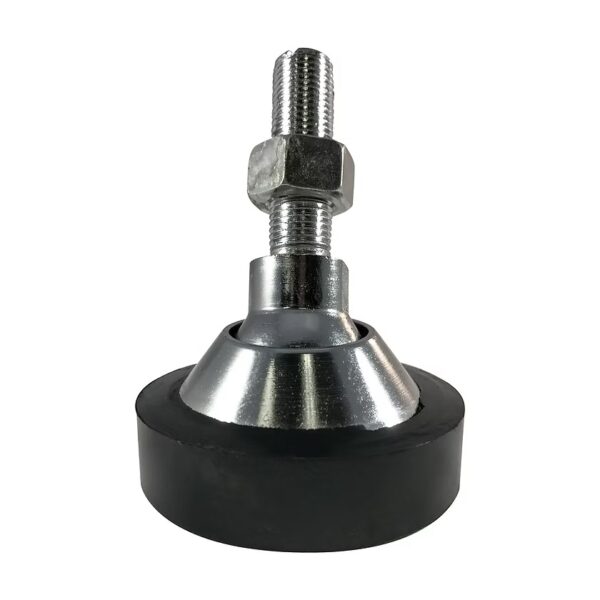

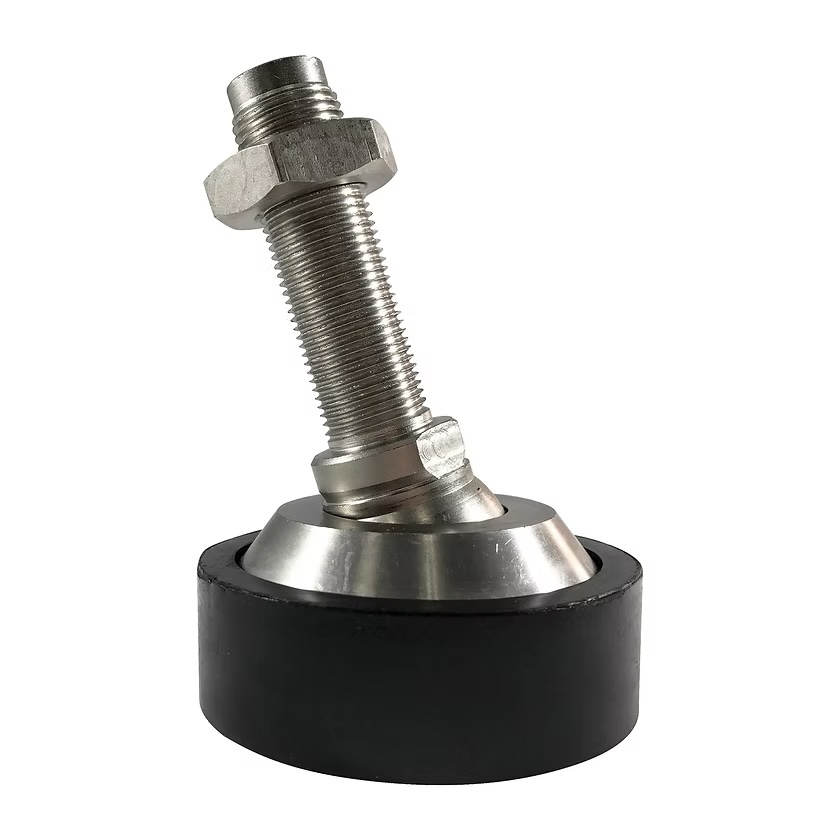

- (4) Ball Swivel Adjustable Leveling Feet
- (4) Mounting Plates for Load Cells
- (4) Spacers for Load Cells
- (8) Bolts for Load Cell Mounting
- (8) Washers for Load Cells
- (8) Spring Lock Washers
- (1) US-6011 Digital LCD Indicator
- (1) Built in Rechargeable Battery

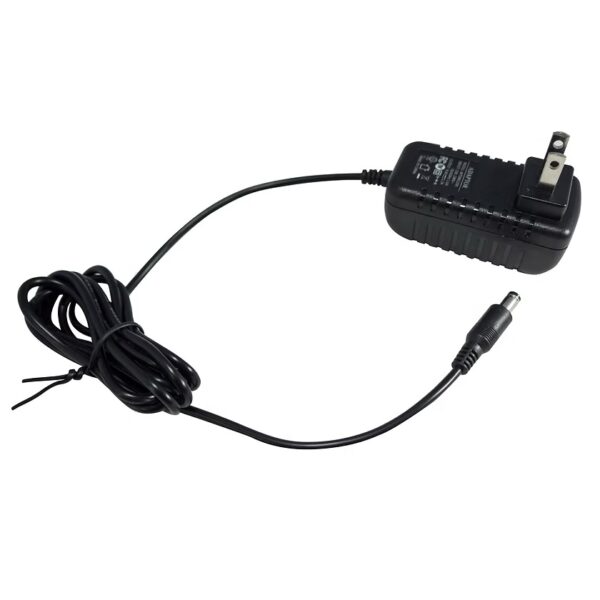

- (1) AC Power Adapter

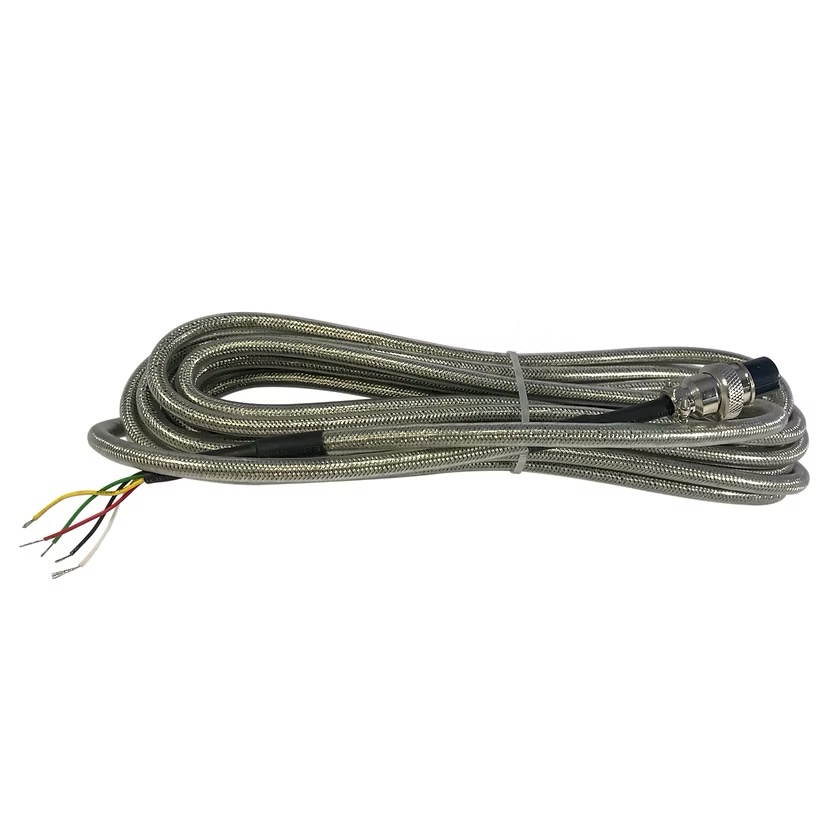

- (1) 15′ Home Run Cable
- (1) Stainless Steel Mounting Bracket
- (1) Owner’s Manual
Common Applications:
- Tank Weighing – Monitor material levels and weight inside storage tanks
- Livestock Scales – Build custom platforms to weigh cattle, pigs, goats, and more
- Hopper Scales – Measure flow and discharge weights in industrial hoppers
- Drum Weighing – Mount under drum platforms for accurate fill tracking
- Pallet Scales – Create heavy-duty pallet weighing systems for warehouses
- Portable Scales – Assemble mobile platforms for field or job site use
- Crate Weighing – Integrate into crate platforms for shipping and logistics
- Baler Monitoring – Track bale weight in recycling or agricultural balers
- Custom Projects – Use in engineering prototypes, automation, or machinery
