Description
The US-X2LP label-printing indicator is built for speed, flexibility, and performance in demanding work environments. Its high-resolution printing delivers sharp, professional labels, while the intuitive touch-screen interface makes customization fast and easy. Designed with a rugged housing for long-term reliability and consistent accuracy, the US-X2LP is well-suited for warehouses, shipping departments, and production floors. With multiple connectivity options available, it integrates seamlessly with existing weighing systems and data platforms to keep operations efficient and streamlined.
US-X2LP Features:
- Checkweighing with an audible alarm for fast pass/fail alerts
- Color-coded keys for quick, intuitive access to commonly used functions
- Heavy-duty construction built for demanding industrial environments
- Sealed keypad to protect against dirt, dust, and spills
- Integrated printer for weights, QR codes, barcodes, and custom labels in multiple languages
- Rechargeable battery for portable, flexible operation
- Programmable auto power-off to conserve energy
- Memory accumulation to total multiple weighments
- Intelligent parts counting that automatically refines piece weight as items are added
- Selectable digital filtering to reduce vibration and environmental interference
- Zero-tracking to maintain a true zero display
- High internal counting resolution of 1:600,000 for precise results

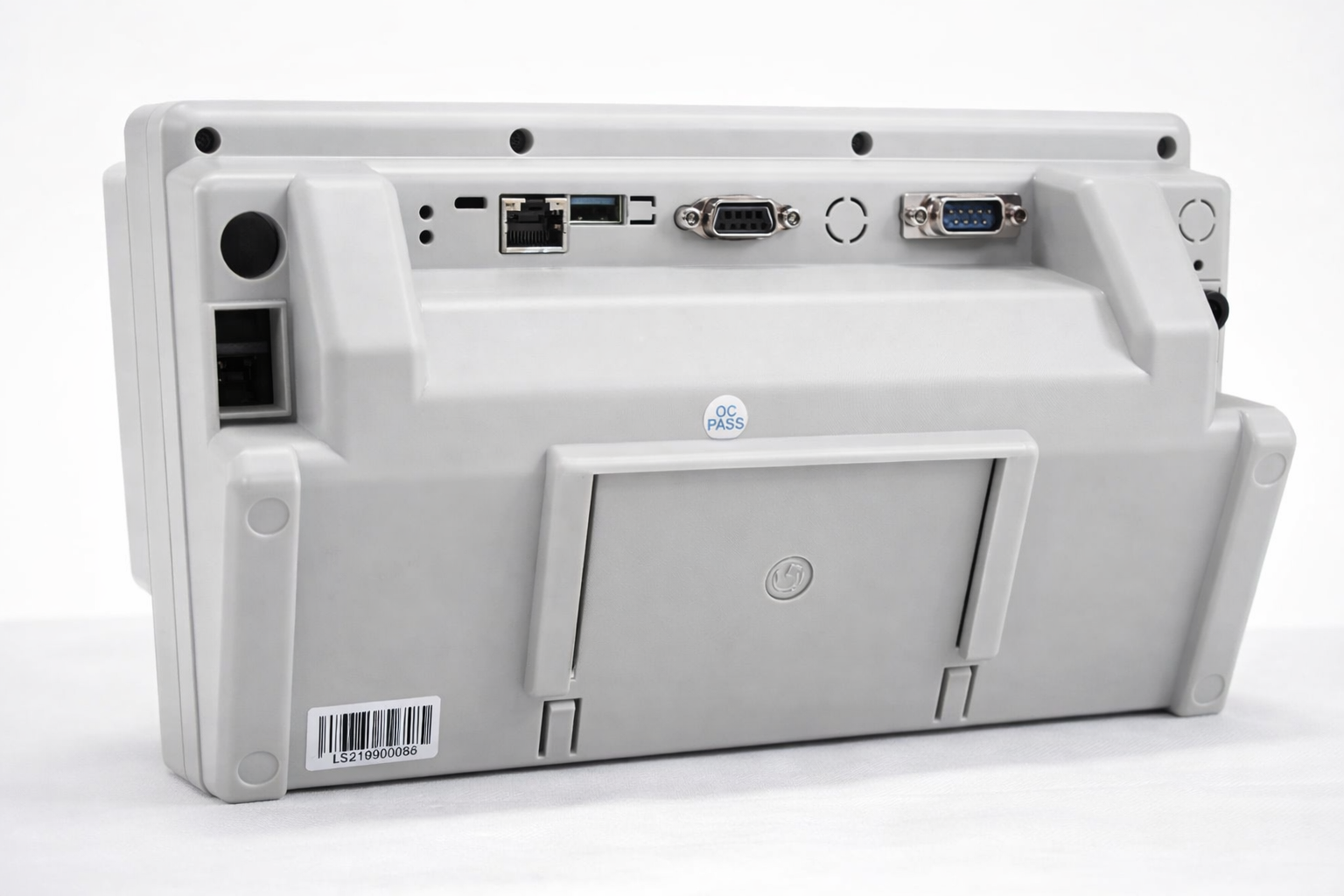

- USB and RS-232 ports for fast communication with PCs and printers
- Product Look-Up (PLU) memory for quick recall of stored items
- Selectable print languages for global use
- Parts counting with user-selectable sample sizes
- Compatible with a wide range of weighing platforms
- Frame warranty: 5 years
- Electronics warranty: 2 years
- Non-NTEP (Not legal for trade)
US-X2LP Specifications:
- Model: US-X2LP
- Capacity Range: Adjustable
- Resolution: 1:600,000
- Excitation Voltage: 5VDC
- Load Cells Supported: 8
- Sensitivity: 0.02 µV/e
- Zero Range: ±20%
- Signal Range: -20mV to +20mV
- Weighing Units Available: g, kg, lb, lb:oz, oz, ct, dr, mm, tl.T and T
- Stabilization Time: 2 seconds
- PLU Memory: 1,006 entries
- Interface: RS-232 or USB
- Calibration Type: External calibration
- Display: Large 8″ Touchscreen LCD Display (200mm)
- Power Supply: 12VDC 3A adapter or internal rechargeable battery 110 hours
- Operating Temperature Range: 0° to 40°C (32° to 104°F)
- Housing Material: ABS plastic
- Dimensions (W x D x H): 11.8″ x 4.9″ x 6.7″ (300 x 170 x 125 mm)
- Net Weight: 6.2 lb (2.8 kg)
What it includes:
- (1) US-X2LP Touchscreen Indicator
- (1) Built in Label Printer
- (1) Rechargeable Battery
- (1) 20′ Home Run Cable
- (1) AC Power Adapter
- (1) Mounting Bracket
- (1) RS-232 to RS-232 Cable
- (1) RS-232 to USB Cable
- (1) Owner’s Manual
Common Applications:
- Retail – Print price labels directly on products
- Warehouse – Generate labels for inventory tracking
- Logistics – Label packages with weight and tracking info
- Manufacturing – Create labels for parts and materials
- Food Industry – Weigh and label food items for sale
- Shipping – Print shipment labels with weight details
- Agriculture – Tag produce with weight and pricing
- Pharmaceutical – Label medication with dosage weights
- E-commerce – Generate weight-based shipping labels
