Ball Transfer Floor Scale 4'x4'
Ball Transfer Floor Scale 4’x4′
★★★★★4.92,000+ verified reviewsNon-NTEP, not legal for trade

$2,299

$2,299Fast, free shipping
Ball Transfer Floor Scale 4'x4'
Ball Transfer Floor Scale 4'x4' - Image 2
Ball Transfer Floor Scale 4'x4' - Image 3
Ball Transfer Floor Scale 4'x4' - Image 4
Ball Transfer Floor Scale 4'x4' - Image 5
Ball Transfer Floor Scale 4'x4' - Image 6
Ball Transfer Floor Scale 4'x4' - Image 7
Ball Transfer Floor Scale 4'x4' - Image 8

Ball Transfer Floor Scale 4’x4′

Price range: $2,299.00 through $2,499.00

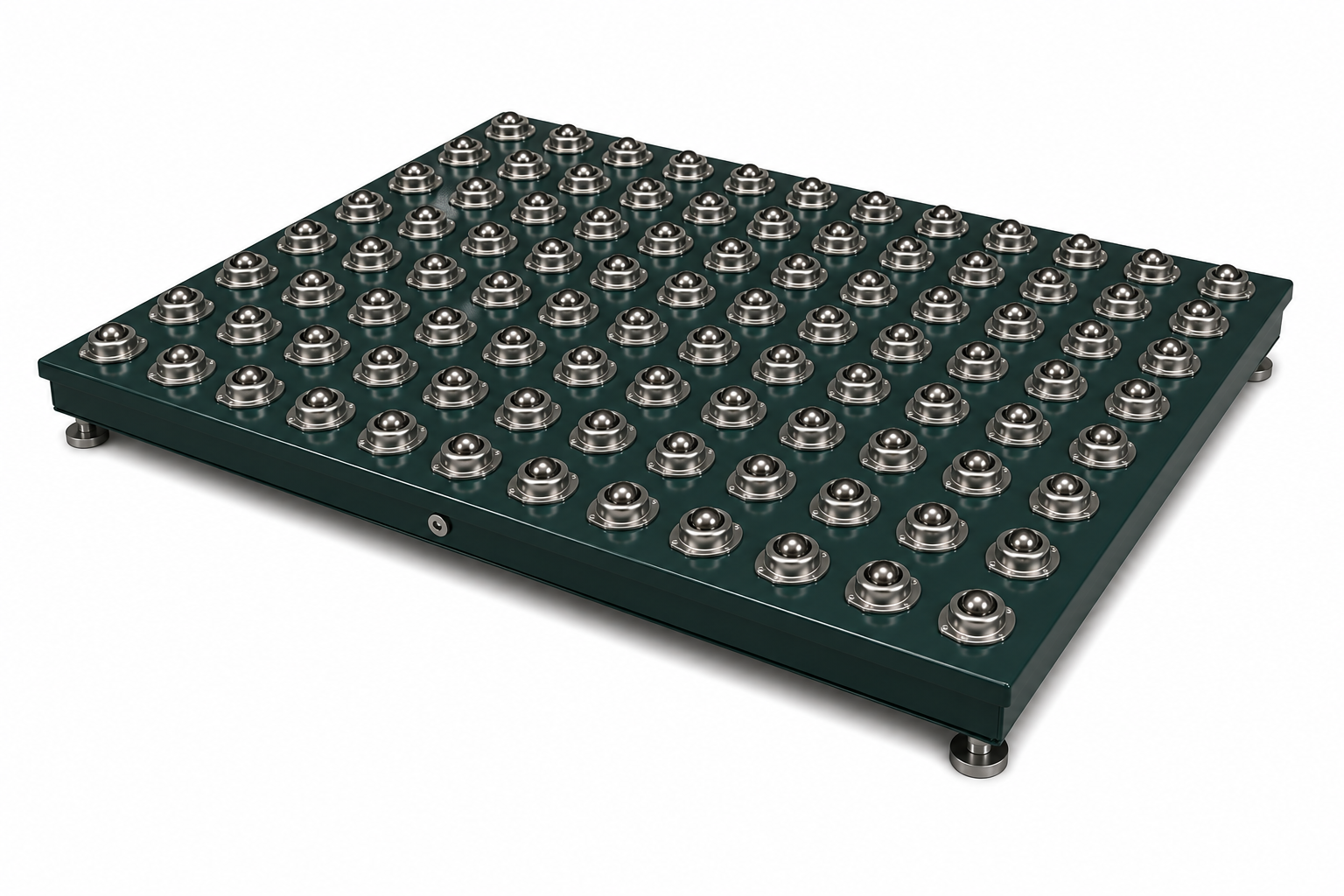

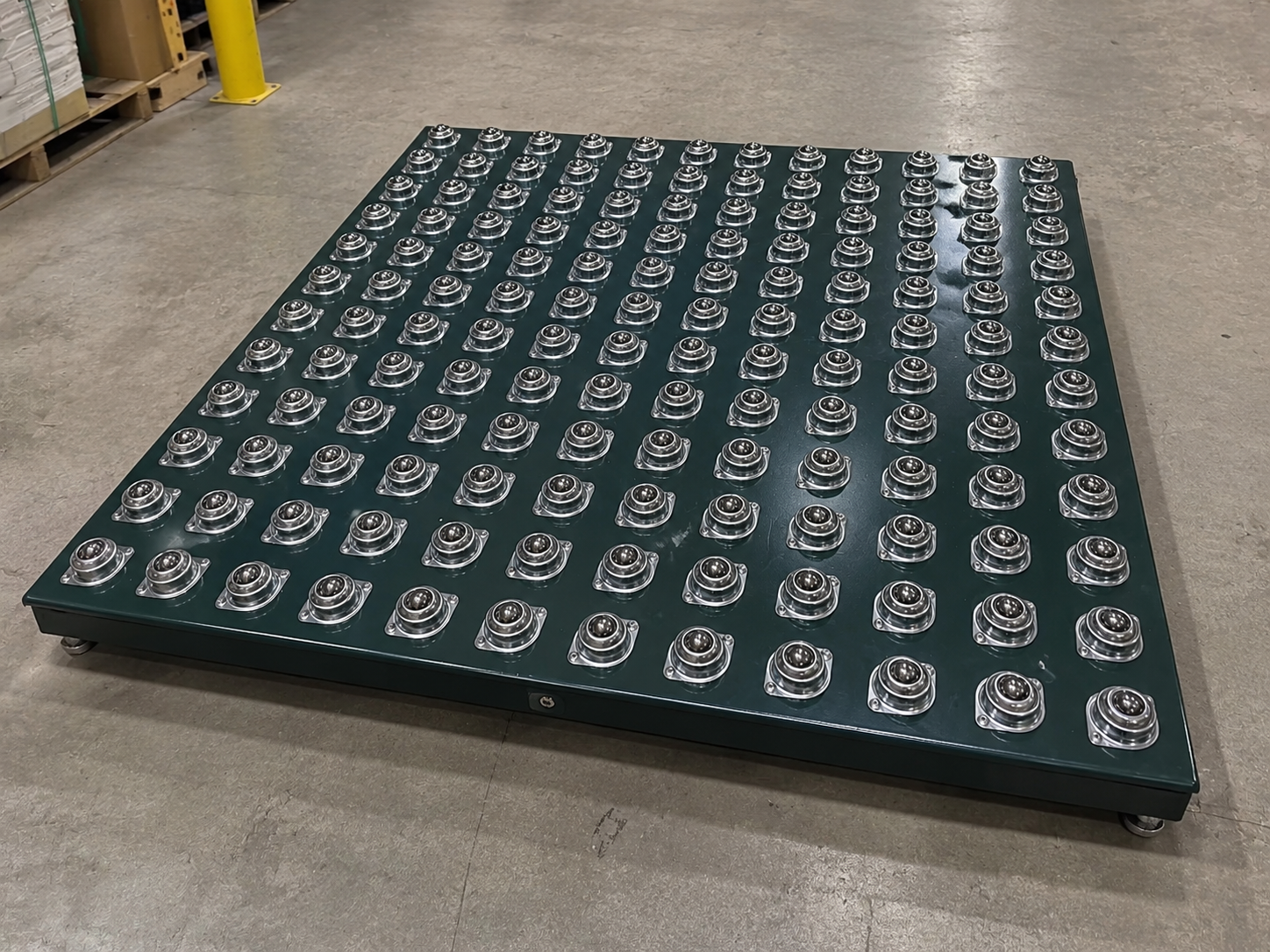

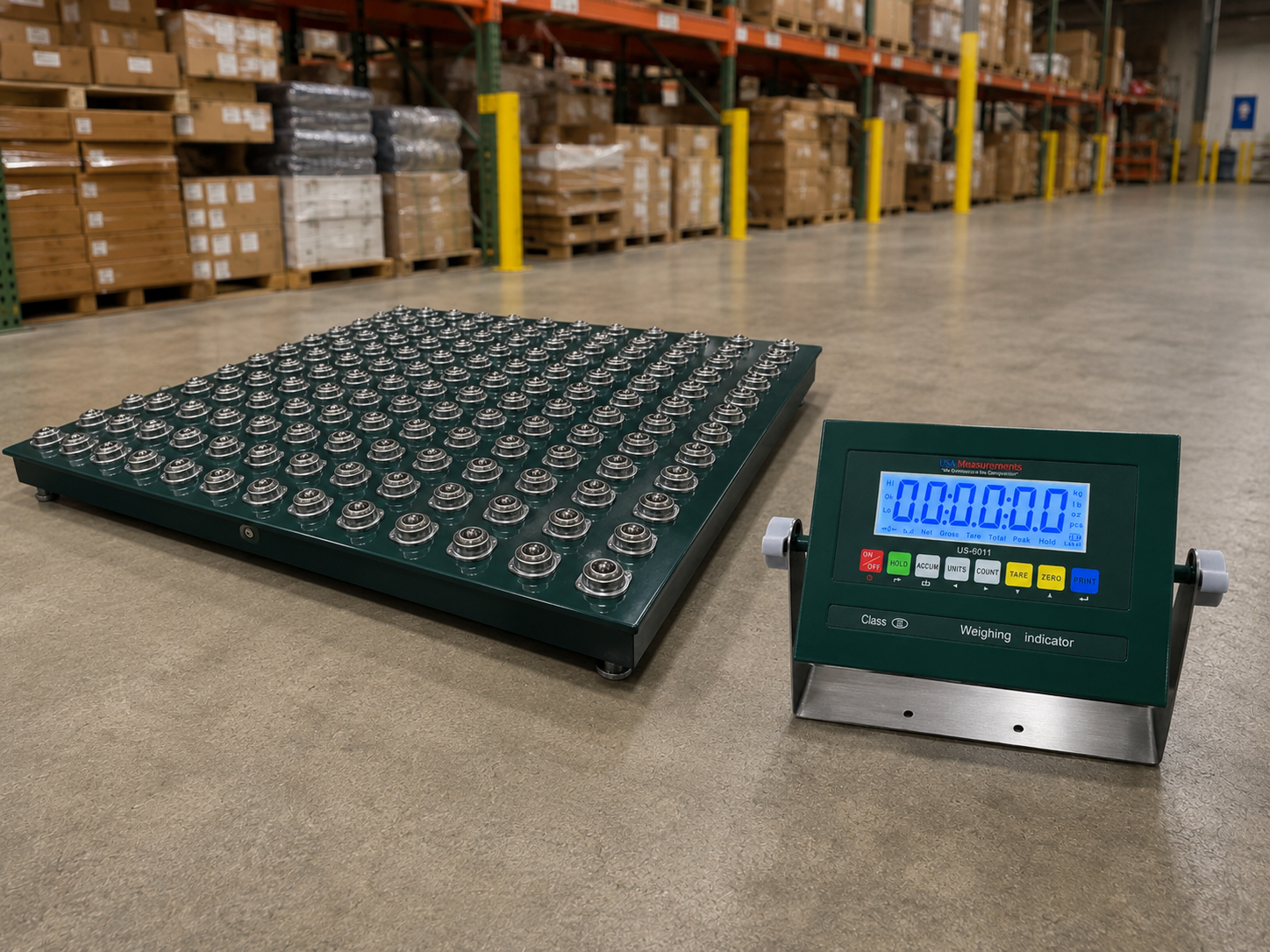

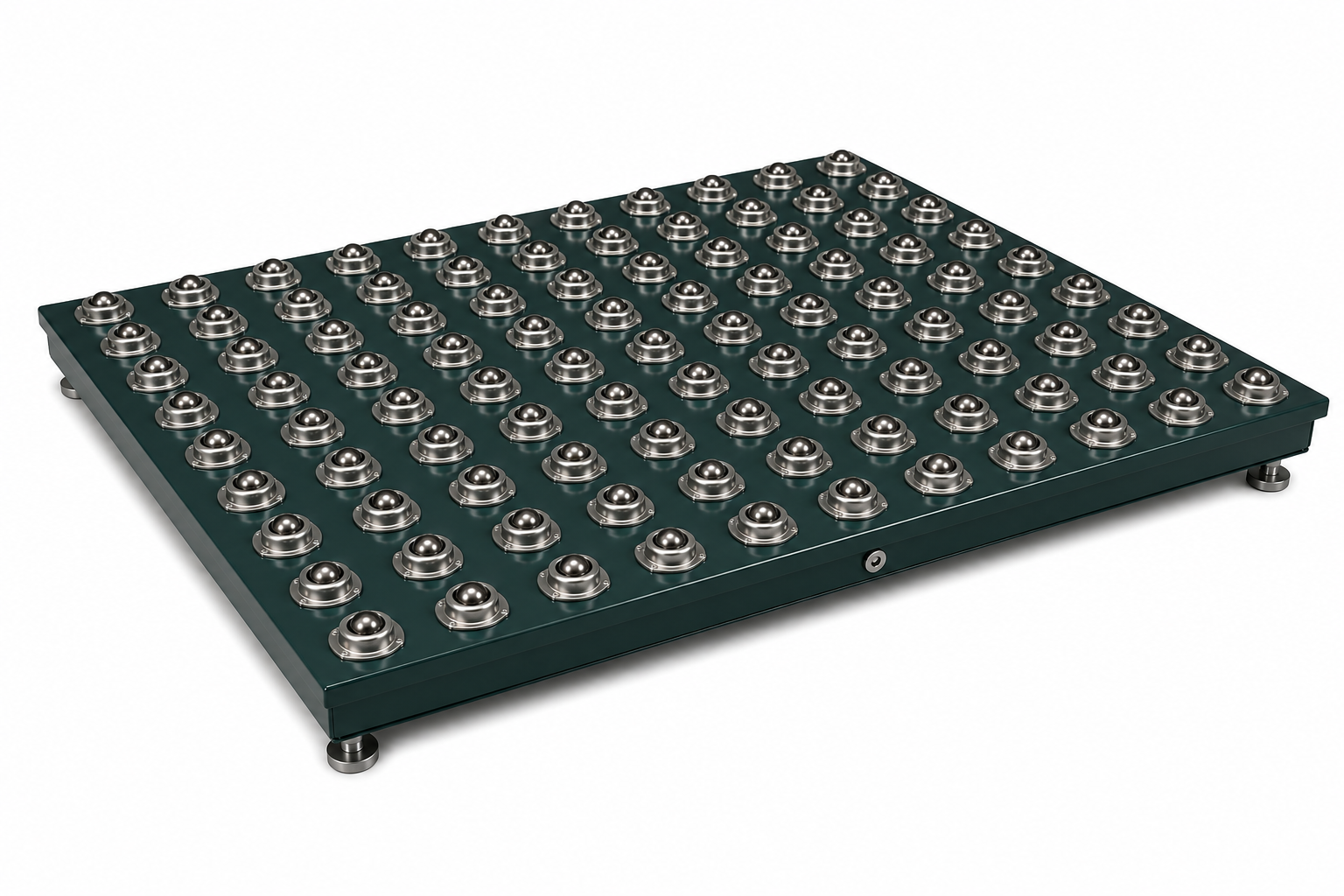

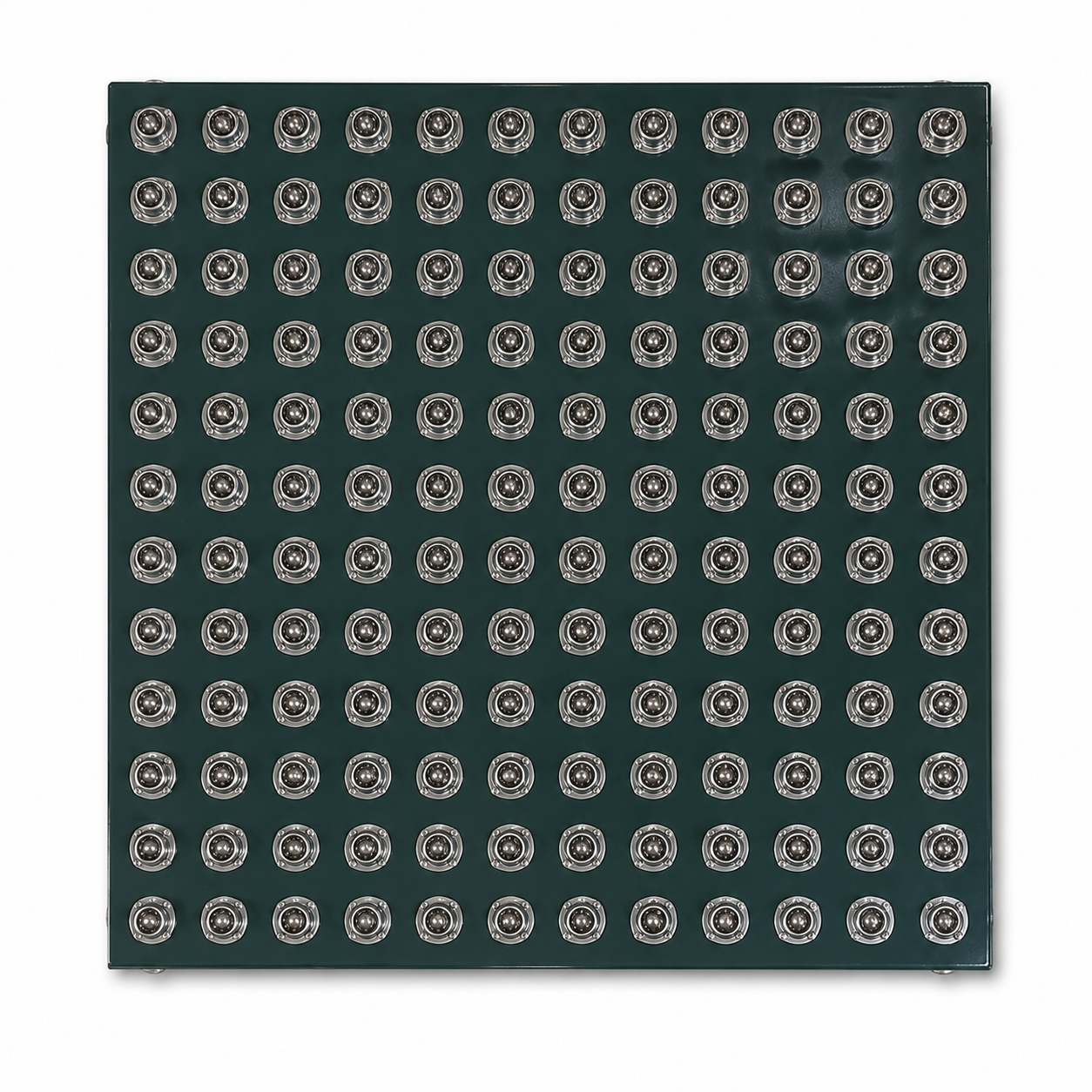

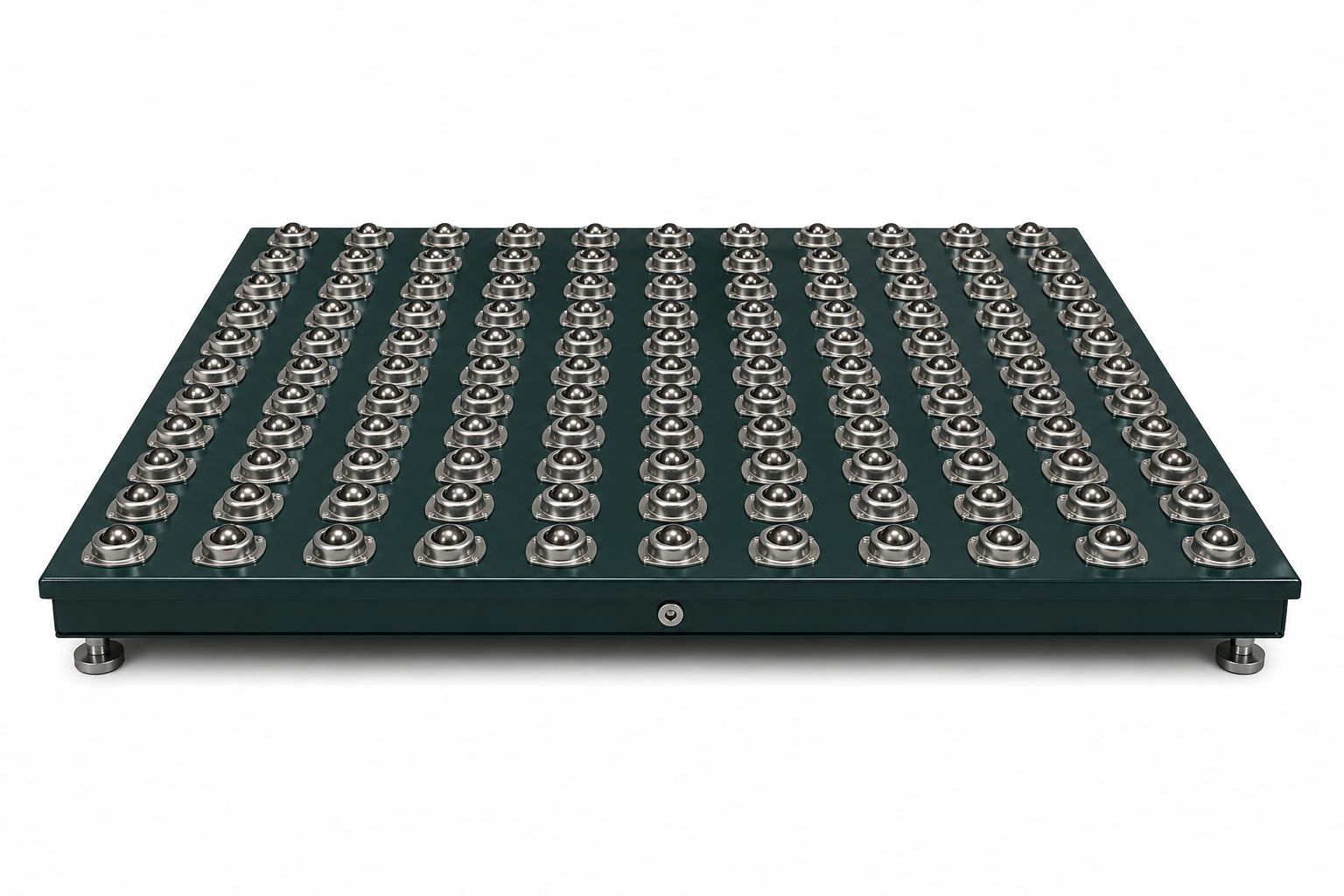

The USA Measurements Ball Transfer Floor Scale is built for one job: move heavy boxes and packages across the scale platform without anyone lifting them. The 48″x48″ mild-steel deck is topped with a tight grid of 100+ stainless steel ball bearings so freight rolls in any direction. Pair two units with a roller conveyor line and you have a true weigh-in-motion-style staging point.

Capacity Options:

  • 5,000 lb (5,000 lb x 1 lb / 48″x48″ Platform)
  • 10,000 lb (10,000 lb x 2 lb / 48″x48″ Platform)

Why a Ball Transfer Top:

  • Roll boxes and packages across the platform with one hand — no lifting heavy freight onto the scale
  • Bidirectional flow: loads can enter and exit on any of the four sides, ideal for L-shaped or T-shaped staging

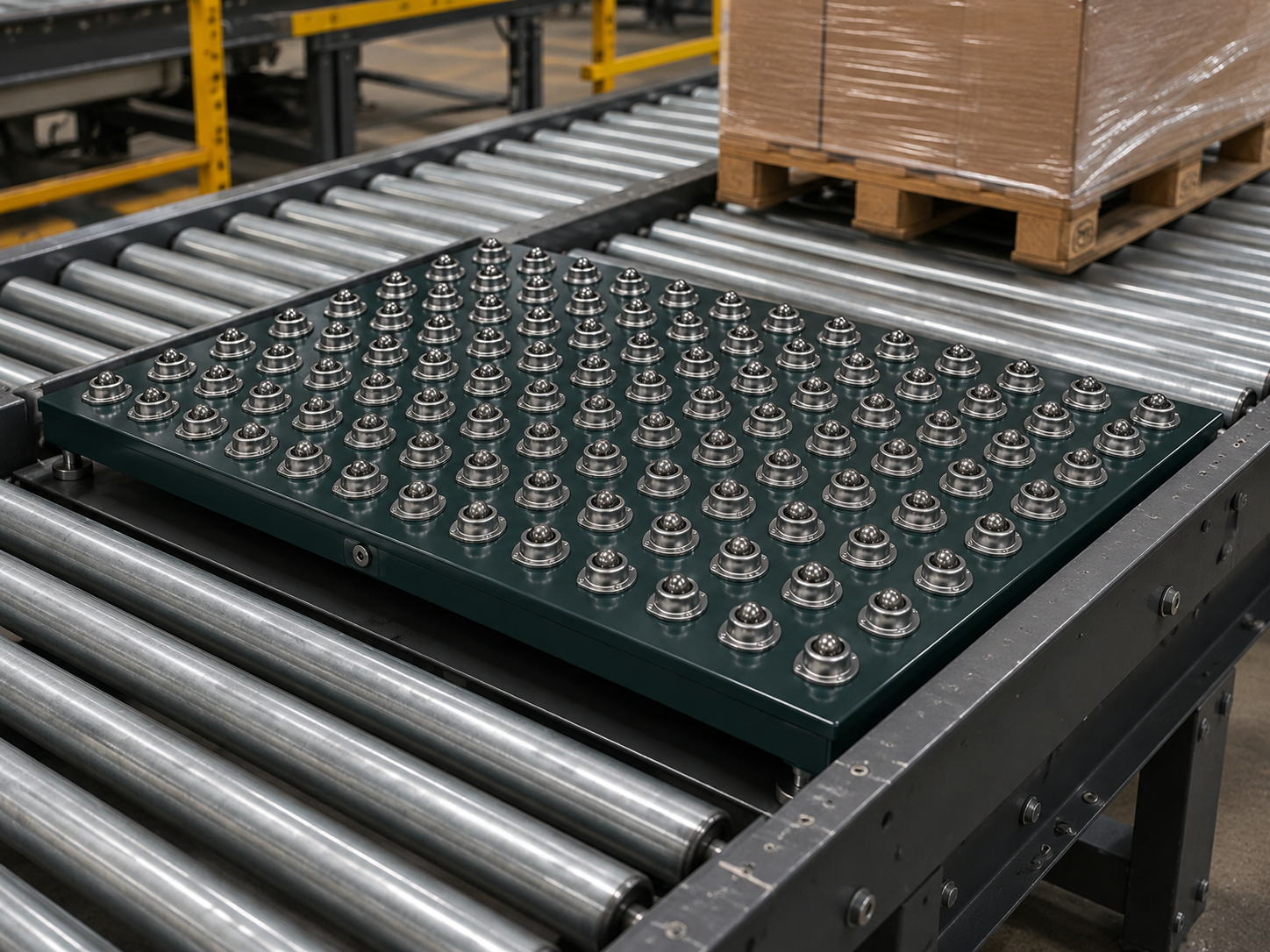

  • Drops into a roller conveyor line at the same deck height, so shipping cells weigh without breaking flow
  • Cuts cycle time at receiving stations versus a flat-top floor scale that requires a pallet jack lift
  • Stainless steel ball bearings resist rust and stand up to warehouse wear
  • Ergonomic — reduces lift injuries on high-throughput shipping docks

Standard Features:

  • 48″x48″ platform, mild steel construction with industrial gloss finish
  • 100+ stainless steel ball transfer bearings in a uniform grid pattern
  • 4 sealed alloy steel shear-beam load cells, IP67 rated
  • NEMA 4X stainless steel junction box with summing card and lightning protection

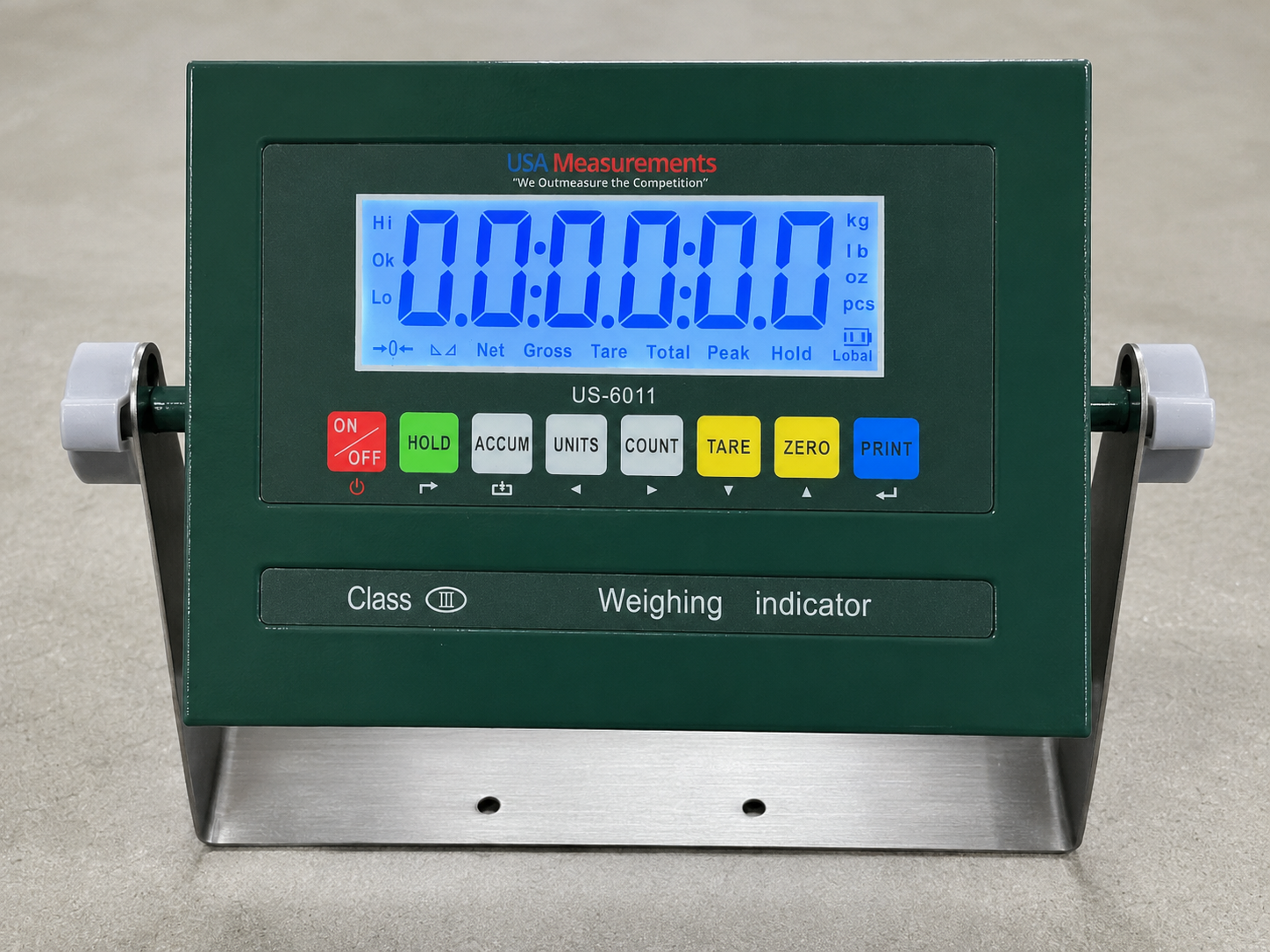

  • US-6011 indicator: large backlit LCD, stainless steel face, tare, zero, units, count, hold, accumulator, print
  • Dual RS-232 serial output for printer or PC connection
  • 20 ft of armored interface cable from platform to indicator
  • AC adapter included; rechargeable battery option available
  • Non-NTEP — Not Legal for Trade (industrial / internal-use weighing only)
  • Adjustable leveling feet on all four corners
  • Pit-mountable for flush installation
  • Includes ramp option (sold separately) for ground-level rolling load access
  • 5-year warranty on the steel frame; 2-year warranty on the electronics
  • Free shipping to the continental US

Specifications:

  • Platform size: 48″ x 48″ (4′ x 4′)
  • Platform height: approximately 3.5″
  • Capacity: 5,000 lb or 10,000 lb (selectable)
  • Resolution: 1 lb (5K model) or 2 lb (10K model)
  • Load cells: 4 sealed alloy steel shear beam, IP67
  • Junction box: NEMA 4X stainless steel, 4-cell summing
  • Indicator: US-6011, LCD display, stainless face, 6-key keypad
  • Connectivity: dual RS-232 serial
  • Power: AC adapter (110V); optional rechargeable battery
  • Cable: 20 ft armored, platform to indicator
  • Operating temperature: 14°F to 104°F (-10°C to 40°C)
  • Approvals: Non-NTEP (not legal-for-trade; industrial / internal-use weighing only)
  • Warranty: 5-year steel frame, 2-year electronics

Resources:

The Ball Transfer Floor Scale 4’x4′ comes in capacities of 5,000 lb and 10,000 lb.

SKU N/A Category Brand:

Related products

  • US-MR8484 “Mr Reliable” 7x7 Floor Scale Non-NTEP (30,000 lb x 5 lb)

    US-MR8484 “Mr Reliable” 7×7 Floor Scale Non-NTEP (30,000 lb x 5 lb)

    $4,299.00     Add to cart
  • Sale! US-BT2432BWDP Floor Scale with Wheels & Backrail NTEP

    US-BT2432BWDP Floor Scale with Wheels & Backrail NTEP

    Original price was: $1,499.00.Current price is: $1,099.00.     Add to cart
  • Sale! Mr Reliable Floor Scale NTEP

    Mr Reliable Floor Scale NTEP

    Price range: $799.00 through $3,999.00     Select options This product has multiple variants. The options may be chosen on the product page
  • Sale! US-EW2424 "Eweigh" 2x2 Floor Scale (10,000 lb x 1 lb)

    Eweigh Floor Scale

    Price range: $599.00 through $3,099.00     Select options This product has multiple variants. The options may be chosen on the product page

$2,299

Non-NTEP, not legal for trade

In stock, ready to ship with our fast, free shipping

About the Ball Transfer Floor Scale 4’x4′

The Ball Transfer Floor Scale 4’x4′ comes in capacities of 5,000 lb and 10,000 lb.

The USA Measurements Ball Transfer Floor Scale is built for one job: move heavy boxes and packages across the scale platform without anyone lifting them. The 48″x48″ mild-steel deck is topped with a tight grid of 100+ stainless steel ball bearings so freight rolls in any direction. Pair two units with a roller conveyor line and you have a true weigh-in-motion-style staging point.

  • Capacity5,000 lb to 10,000 lb
  • IndicatorUS-6011, LCD display, stainless face, 6-key keypad
  • Warranty5 years frame, 2 years electronics
  • Legal for tradeNo (non-NTEP)

Specifications

Capacity and accuracy
Capacity5,000 lb
Resolution1 lb (5K model) or 2 lb (10K model)
Size and weight
Platform size48 in x 48 in (4 ft x 4 ft)
Platform heightapproximately 3.5 in
Construction
Load cells4 sealed alloy steel shear beam, IP67
Operating temperature14°F to 104°F (-10°C to 40°C)
Power
PowerAC adapter (110V); optional rechargeable battery
Display and indicator
IndicatorUS-6011, LCD display, stainless face, 6-key keypad
Connectivity and outputs
Connectivitydual RS-232 serial
Cable20 ft armored, platform to indicator
Certifications
Legal for tradeNo, non-NTEP (internal weighing)
Warranty
Warranty5-year steel frame, 2-year electronics
Other specifications
Junction boxNEMA 4X stainless steel, 4-cell summing
All model numbers (2)

US-MR4848-BT-5K, US-MR4848-BT-10K

Features

The scale

  • 5,000 lb (5,000 lb x 1 lb / 48 in x 48 in Platform)
  • 10,000 lb (10,000 lb x 2 lb / 48 in x 48 in Platform)
  • 48 in x 48 in platform, mild steel construction with industrial gloss finish
  • 100+ stainless steel ball transfer bearings in a uniform grid pattern
  • 4 sealed alloy steel shear-beam load cells, IP67 rated
  • NEMA 4X stainless steel junction box with summing card and lightning protection
  • US-6011 indicator: large backlit LCD, stainless steel face, tare, zero, units, count, hold, accumulator, print
  • Dual RS-232 serial output for printer or PC connection
  • 20 ft of armored interface cable from platform to indicator
  • AC adapter included; rechargeable battery option available
  • Non-NTEP, Not Legal for Trade (industrial / internal-use weighing only)
  • Adjustable leveling feet on all four corners
  • Pit-mountable for flush installation
  • 5-year warranty on the steel frame; 2-year warranty on the electronics

Features

  • Approvals: Non-NTEP (not legal-for-trade; industrial / internal-use weighing only)

Questions about the Ball Transfer Floor Scale 4’x4′

Is it legal for trade (NTEP)?

No. It is non-NTEP, so it is for internal weighing, not for buying or selling by weight.

How much weight can it hold?

Up to 5,000 lb.

  • Load cells: 4 sealed alloy steel shear beam, IP67
What size is it?
  • Weighing surface: 48 in x 48 in (4 ft x 4 ft)

Not sure it fits your space or loads? Call 800-711-2237 and we will check it with you.

How is it powered?
  • Power: AC adapter (110V); optional rechargeable battery
How do pallets get on the scale?

Set loads down with a forklift, or add ramps so a pallet jack can roll on: one ramp $499, two ramps $998.

Can it get wet or be used outdoors?

Here is what the specifications say:

  • 4 sealed alloy steel shear-beam load cells, IP67 rated
Can it print weight tickets?

Yes. Add a printer under Upgrades on this page ($299).

Can it connect to a computer, PLC or other equipment?
  • Connectivity: dual RS-232 serial

An output to a PLC or control system is available under Upgrades on this page ($499).

How long is the cable?
  • Cable: 20 ft armored, platform to indicator
How is it installed?
  • Adjustable leveling feet on all four corners
  • Pit-mountable for flush installation

To set it flush with the floor, add a pit frame under Upgrades on this page ($699 to $849).

What does the warranty cover?
  • 5 years on the frame.
  • 2 years on the electronics.
  • 30-day return guarantee on every order.
  • Free lifetime tech support from our US-based team.
How can I pay?

At checkout: credit or debit card (or Link), PayPal, or pay over time with Klarna or Affirm when they are offered for your order. For a PO, net 30 terms, a company check or ACH, call 800-711-2237 (net 30 needs approval). We also offer financing through Approve.

How does it ship?

It ships with our fast, free shipping. You get tracking by email as soon as it ships.

How it ships

Fast, free shipping.

Tracking

You get tracking by email as soon as it ships.
