US-AX1010-60 Cargo Axle Scale with 2 Ramps (60,000 lb)
US-AX1010-60 Cargo Axle Scale with 2 Ramps (60,000 lb)
★★★★★4.92,000+ verified reviewsNon-NTEP, not legal for trade

Model: US-AX1010-60

$18,795 $15,995

Save $2,800 (15%)

Sale!

US-AX1010-60 Cargo Axle Scale with 2 Ramps (60,000 lb)

Original price was: $18,795.00.Current price is: $15,995.00.

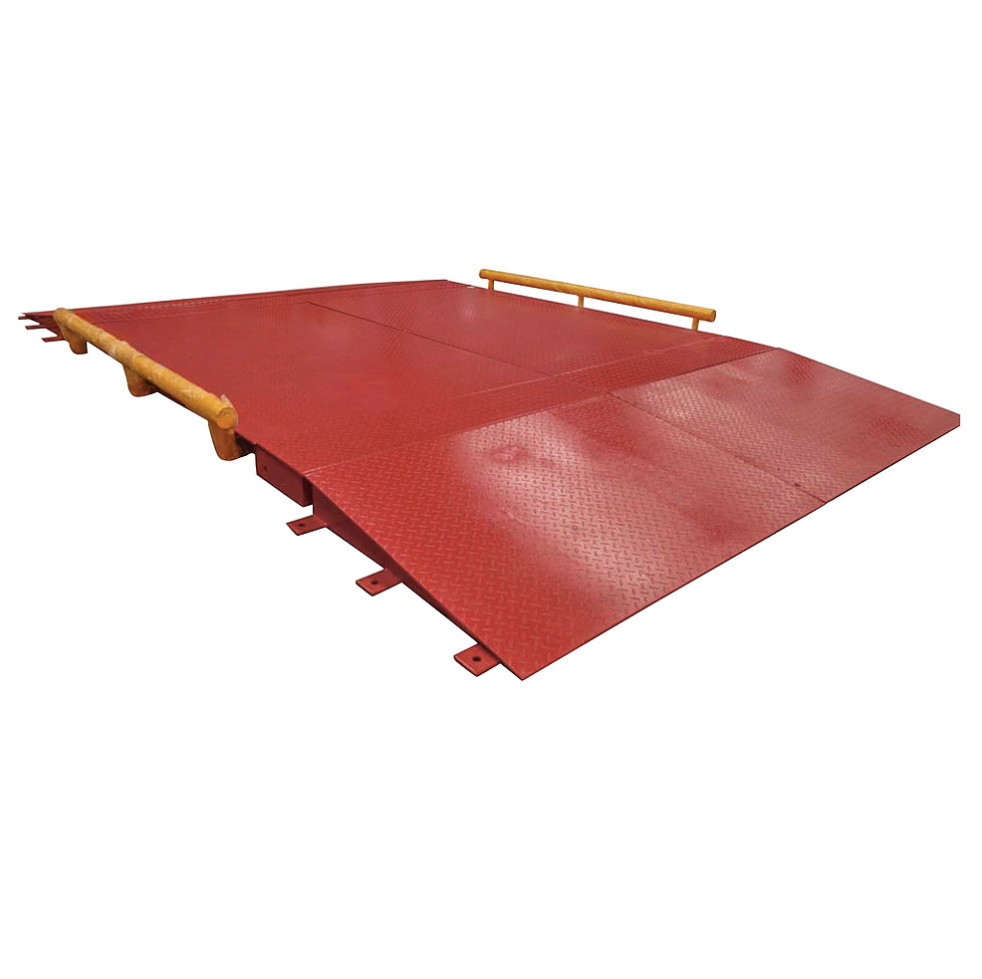

The Maverick cargo scale gives shipping yards, container operations and equipment dealers a 10 x 10 ft heavy duty platform for trucks, containers, bucket loaders and bulk material. The diamond plated twin module steel deck sits only 6 in high with two included ramps and yellow side rails. It works indoors or out, installs above ground or flush, and arrives factory calibrated with 200% overload protection and an 80 hour rechargeable indicator. It carries a 5 year frame warranty.

Overall Features:

  • 10’x10′ Heavy Duty Platform
  • Twin module steel deck Design
  • Includes Yellow Side Rails for Protection
  • Diamond Plated Steel Construction
  • Low Profile 6” Design
  • Scale can be used Indoor or outdoor (Weather safe)
  • Great for weighing container
  • Includes (2) Ramps 40″ L x 10′ W
  • Can be installed above ground or Flush
  • Easy to Set-up and easy to move if needed
  • Finished with Epoxy paint
  • 60,000 lbs x 10 lb Capacity
  • Arrives Factory Calibrated
  • 200% Overload Protection
  • 5 year warranty on Steel Frame
  • 2 Year Warranty on Electronics
  • Non-NTEP (Not legal for trade)

Indicator Features:

  • LED or LCD display
  • 1″ Tall backlit display
  • Rechargeable battery (up to 80 hrs)
  • Metal casing (Stainless steel)
  • AC adapter included
  • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Splash proof  keyboard and display
  • Connects to a remote display and printer
  • Displays up to 50,000 graduations
  • Full Duplex RS-232 Serial Port

Optional Accessories:

  • Thermal Printer
  • Label Printer
  • Remote Display
  • Scoreboard Display
  • Data Logging Software
  • Indicator Stand

Specifications

  • Material: Heavy Duty Steel
  • Overload Protection: 200%
  • Capacity: 60,000 lb
  • Ramp Length: 3.4 ft (40 in)
  • Cable Length: 50 ft
  • Warranty: 5 years platform
  • Warranty: 2 Years Load cells
  • Warranty: 1 Year All other components

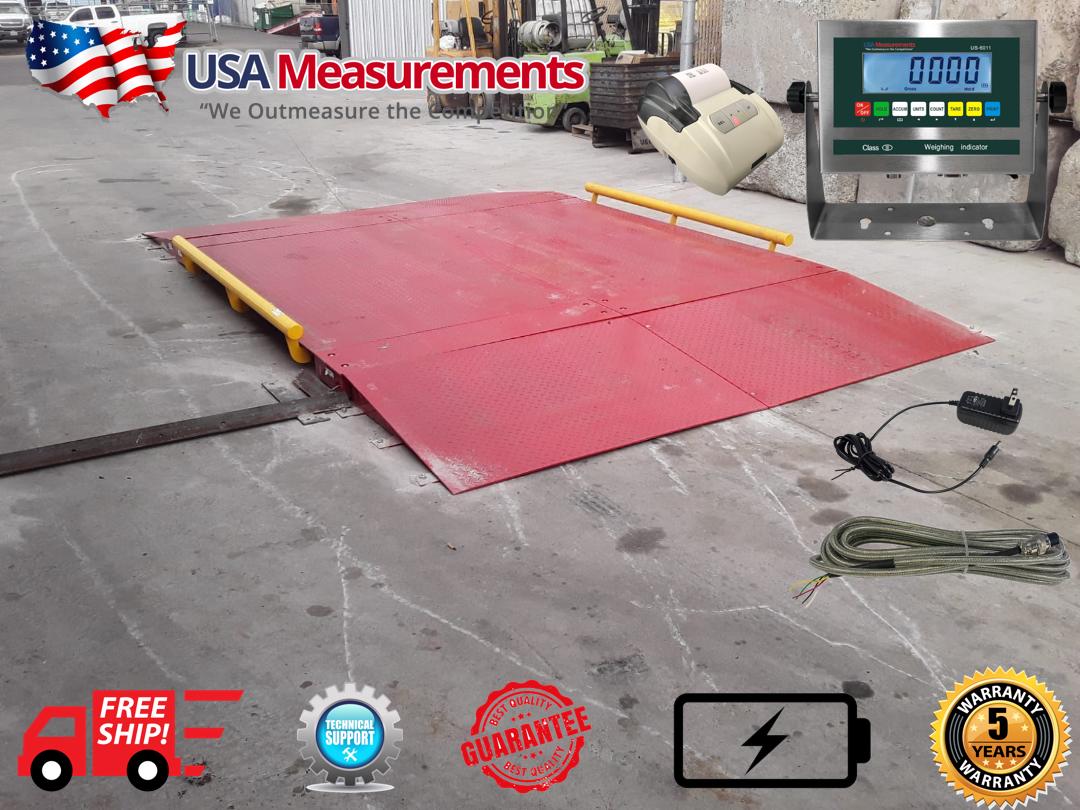

USA Measurements “Maverick” Cargo Scale US-AX1010-60K. Our Maverick Cargo Scale is ideal for cargo shipping, weighing trucks, shipping containers, weighing large material, bucket loaders, and many other applications. This scale can be used indoor or outdoor (all weather safe). Our package includes the 10’x10′ platform, side rails (yellow), (2) ramps, digital indicator, printer, and factory calibrated.

SKU US-AX1010-60 Category Brand:

$18,795 $15,995

Save $2,800 (15%)

Non-NTEP, not legal for trade

In stock, ready to ship with our fast, free shipping

About the Cargo Axle Scale with 2 Ramps

USA Measurements “Maverick” Cargo Scale US-AX1010-60K. Our Maverick Cargo Scale is ideal for cargo shipping, weighing trucks, shipping containers, weighing large material, bucket loaders, and many other applications. This scale can be used indoor or outdoor (all weather safe). Our package includes the 10’x10′ platform, side rails (yellow), (2) ramps, digital indicator, printer, and factory calibrated.

The Maverick cargo scale gives shipping yards, container operations and equipment dealers a 10 x 10 ft heavy duty platform for trucks, containers, bucket loaders and bulk material. The diamond plated twin module steel deck sits only 6 in high with two included ramps and yellow side rails. It works indoors or out, installs above ground or flush, and arrives factory calibrated with 200% overload protection and an 80 hour rechargeable indicator. It carries a 5 year frame warranty.

  • Capacity60,000 lb
  • Size10 x 10 in
  • Legal for tradeNo (non-NTEP)

Specifications

Capacity60,000 lb
Overload Protection200%
Platform size10 x 10 in
Ramp Length3.4 ft (40 in)
MaterialHeavy Duty Steel
PowerRechargeable battery (up to 80 hrs)
Indicator weighing units(LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
Cable Length50 ft
Legal for tradeNo, non-NTEP (internal weighing)
Warranty5 years platform
Warranty2 Years Load cells
Warranty1 Year All other components

Features

The scale

  • 10 ft x 10 ft Heavy Duty Platform
  • Twin module steel deck Design
  • Includes Yellow Side Rails for Protection
  • Diamond Plated Steel Construction
  • Low Profile 6 in Design
  • Scale can be used Indoor or outdoor (Weather safe)
  • Great for weighing container
  • Includes (2) Ramps 40 in L x 10 ft W
  • Can be installed above ground or Flush
  • Easy to Set-up and easy to move if needed
  • Finished with Epoxy paint
  • 60,000 lbs x 10 lb Capacity
  • Arrives Factory Calibrated
  • 200% Overload Protection
  • 5 year warranty on Steel Frame
  • 2 Year Warranty on Electronics
  • Non-NTEP (Not legal for trade)

indicator

  • LED or LCD display
  • 1 in Tall backlit display
  • Rechargeable battery (up to 80 hrs)
  • Metal casing (Stainless steel)
  • AC adapter included
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Splash proof keyboard and display
  • Connects to a remote display and printer
  • Displays up to 50,000 graduations
  • Full Duplex RS-232 Serial Port

The scale

  • Thermal Printer
  • Label Printer
  • Remote Display
  • Scoreboard Display
  • Data Logging Software
  • Indicator Stand

Questions about the Cargo Axle Scale with 2 Ramps

Is it legal for trade (NTEP)?

No. It is non-NTEP, so it is for internal weighing, not for buying or selling by weight.

How much weight can it hold?

Up to 60,000 lb.

What size is it?
  • Weighing surface: 10 x 10 in

Not sure it fits your space or loads? Call 800-711-2237 and we will check it with you.

How is it powered?
  • Power: Rechargeable battery (up to 80 hrs)
Does it arrive calibrated?

Yes, it is factory calibrated. Add a calibration certificate under Upgrades on this page if you need a signed report of accuracy. Our 75+ service partners can also calibrate on site.

Can it get wet or be used outdoors?

Here is what the specifications say:

  • Scale can be used Indoor or outdoor (Weather safe)
Can it print weight tickets?

Yes. Add a printer under Upgrades on this page ($299 to $599).

Can it connect to a computer, PLC or other equipment?
  • Full Duplex RS-232 Serial Port
How long is the cable?
  • Cable Length: 50 ft
How is it installed?
  • Can be installed above ground or Flush
